Closed pressing-system with hermetically sealed door / TPG ZS:

At the closed pressing-system with hermetically sealed and pneumatic door the winepress provides all the advantages of a tank-press. Additionally the possibility to herterodyne the mash with gas to establish an anoxyic zone and to avoid oxidation.

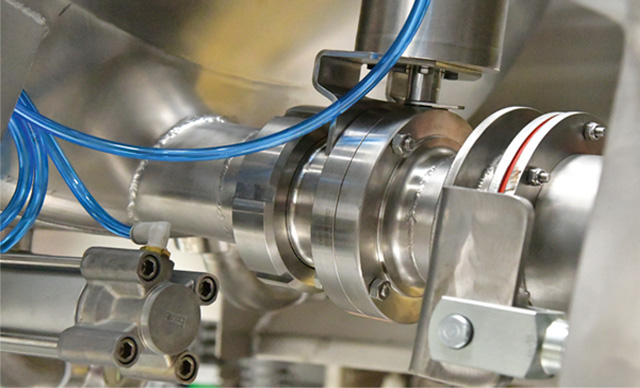

Zentral juice drain connection ZS for TPG presses:

Allows pressing in oxygen-free environment. The must does not get in touch with Oxygen through usage of an automated juice drain and a closed juice tub, under application of inert gas.

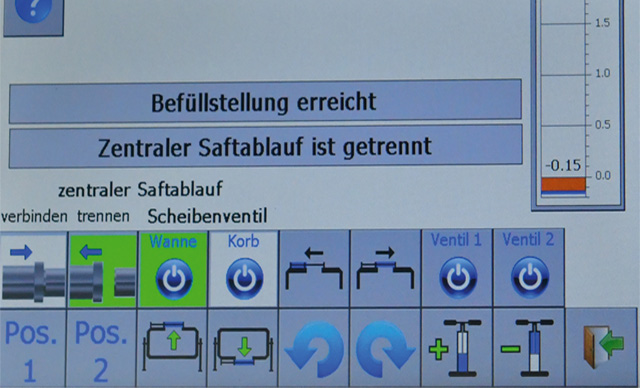

  • self-explanatory pressing program – operation via touch panel
  • different preprogrammed fixed programs
    manual control or free progammable pressing programs, pectin-program,
    whole grapes-pogram, flavour-programm, red-wine-program, primary-program „Grand Reserve“
  • optional interface for external access-uni e.g..: PC oder laptop
  • Display of maintenance intervals and error messages
  • Suggestions for troubleshooting on the display
  • Pneumatically actuated shunting door with inflatable seal — including
    pneumatic rotary feedthrough
  • Open frame construction made of shaped-tube frame
  • Sliding guide plate on the shaped-tube frame for selective pomace discharge — as of TPG 2600
  • Gentle start with frequency converter
  • Pomace-discharge strip with TPG 3000, 5000, 6000, 7500, and 10000
  • Basket opening with TPG 2200: 670 mm x 500 mm — one longitudinally slideable rectangular door on the basket
  • Basket opening with TPG 2600–TPG 10000: 920 mm x 500 mm — one longitudinally slideable rectangular door on the basket
  • external air-supply
  • Clean-Manaell-Unit for easy quick-cleaning
  • Pressing in a sealed atmoshere (CO2)
  • disc valve for controlled juice drainage
  • Cooling jacket for the press basket
  • Level control for juice tray
  • external control
  • PC-interface
  • gravity funnels
  • individual chutes
  • sliding tubs
  • custom-made overall plants


  • Design completely in stainless steel
  • hermetically sealed pressing programm
  • Permanently mounted compressor and pre-pressure blower (also possible externally)
  • Large geared motor (low-noise operation)
  • Tight pneumatic door
  • Frequency controlles start-up
  • Pressing membrane of polyurethane (food safe)
  • Membrane exactly fitted, no creasing
  • 3 filling programs (careful filling, fresh must, whole grapes)
  • Pre-programmed filling position – loading from above
  • Pre-programmed emptying position
  • Free programmable cleaning position
  • Easy cleaning
  • Smooth pomace discharge
  • Simple and quick cleaning because of fully welded parts


All details and technical datas you find here:

Brochure TPG ZS
