Receiving trouhgs

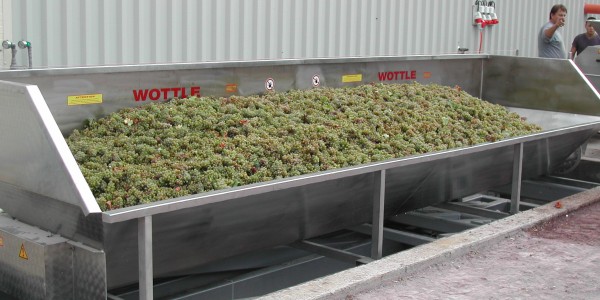

Receiving troughs with narrow width, screw diameter 250 mm

Dimensions

  • Volumetric capacity: 1.5 tons
  • Length: 2500 mm
  • Width: 1500 mm
  • Front height: 680 mm
  • Rear height: 1100 mm
  • Volumetric capacity: 1.8 tons
  • Length: 3000 mm
  • Width: 1500 mm
  • Front height: 680 mm
  • Rear height: 1100 mm
  • Volumetric capacity: 2.5 tons
  • Length: 4000 mm
  • Width: 1500 mm
  • Front height: 680 mm
  • Rear height: 1100 mm
  • Volumetric capacity: 3 tons
  • Length: 5000 mm
  • Width: 1500 mm
  • Front height: 680 mm
  • Rear height: 1100 mm
  • Volumetric capacity: 3.6 tons
  • Length: 6000 mm
  • Width: 1500 mm
  • Front height: 680 mm
  • Rear height: 1100 mm

Description

  • Stainless steel design
  • Equipped with a screw and geared motor
  • Screw conveyor diameter of 250 mm
  • Drive powered by a geared motor through a chain-drive
  • Drive capacity ranging from 1.5 kW to 4 kW
  • Monopump option available
  • Option for locking the door with leverage mechanism
  • Option for locking the door with an electric spindle motor
  • Torque motor available for an additional cost
  • Lifting system available for an additional cost

Brochure



All details and technical data you find here:

Brochure receiving troughs

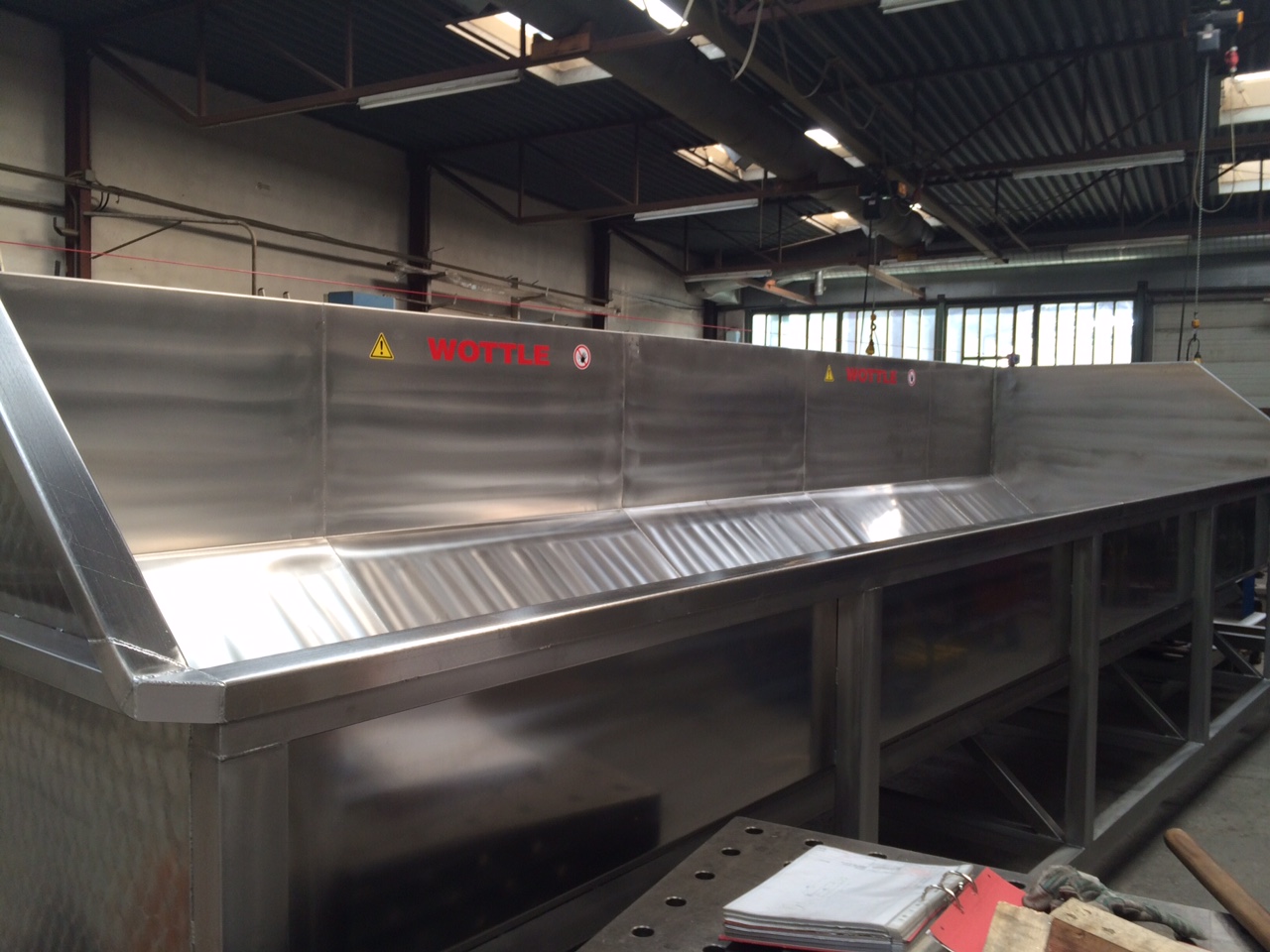

Receiving troughs with oversized width, screw diameter 300 mm

Dimensions

  • Volumetric capacity: 2.5 tons
  • Length: 2500 mm
  • Width: 2000 mm
  • Front height: 1100 mm
  • Rear height: 1700 mm
  • Volumetric capacity: 3 tons
  • Length: 3000 mm
  • Width: 2000 mm
  • Front height: 1100 mm
  • Rear height: 1700 mm
  • Volumetric capacity: 4 tons
  • Length: 4000 mm
  • Width: 2000 mm
  • Front height: 1100 mm
  • Rear height: 1700 mm
  • Volumetric capacity: 5 tons
  • Length: 5000 mm
  • Width: 2000 mm
  • Front height: 1100 mm
  • Rear height: 1700 mm
  • Volumetric capacity: 6 tons
  • Length: 6000 mm
  • Width: 2000 mm
  • Front height: 1100 mm
  • Rear height: 1700 mm

Description:

  • Made of stainless steel
  • Equipped with a screw and geared motor
  • Screw conveyor diameter of 300 mm
  • Driven by a geared motor via a chain drive
  • Drive capacity of 1.5-4 kW
  • Optional monopump available
  • Optional lever-operated door lock
  • Optional door lock with electric spindle motor
  • Torque motor available upon request
  • Lifting systems available upon request

Brochures



All details and technical data you find here:

Brochure receiving trouhgs
