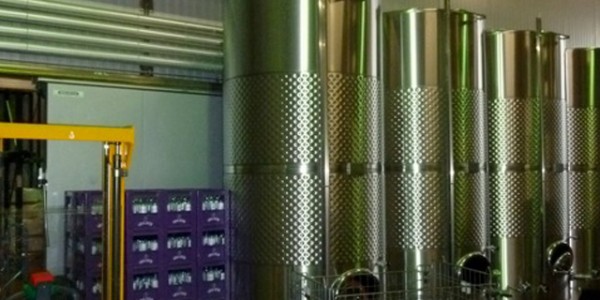

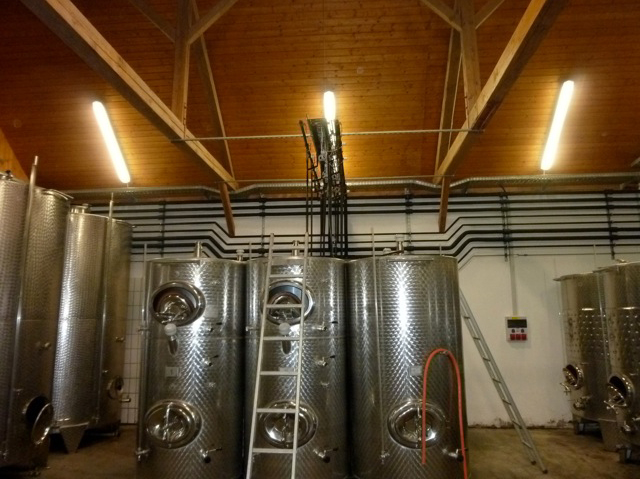

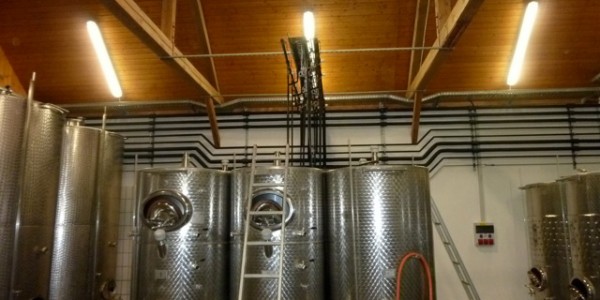

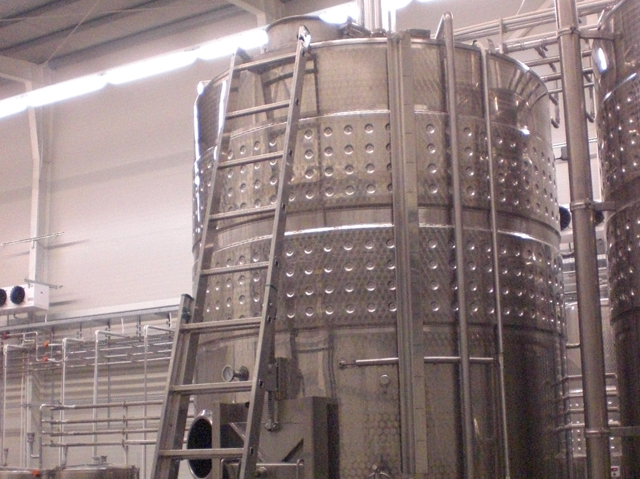

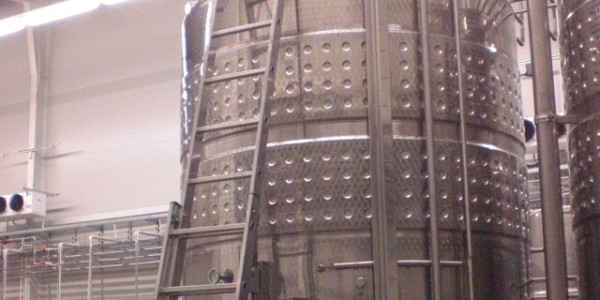

storage tanks and agitating tanks

Optional equipment for agitating tanks:

  • Heating system
  • External sprinkler system for tank cooling
  • Double jacket for temperature control
  • Fermentation tank controls
  • Marc breaker for crushing grape skins
  • Cooling coils installed on the exterior of the tank

technical dimensions:

  • Diameter: 1100 mm
  • Height: 1250 mm
  • Diameter: 1200 mm
  • Height: 2000 mm
  • Diameter: 1200 mm
  • Height: 2500 mm
  • Diameter: 1450 mm
  • Height: 2500 mm
  • Diameter: 1450 mm
  • Height: 3000 mm
  • Diameter: 1600 mm
  • Height: 3000 mm
  • Diameter: 1850 mm
  • Height: 3000 mm
  • Diameter: 2000 mm
  • Height: 3000 mm
  • Diameter: 2200 mm
  • Height: 3000 mm
  • Diameter: 2500 mm
  • Height: 3000 mm

Intermediate sizes on request

Description:

  • Made of stainless steel material no. 1.4301
  • Available in upright or horizontal design
  • Optional taper base or cambered base
  • Equipped with fixed legs
  • Standard diameter of the manhole: 400 mm
  • Clear drain with a 5/4″ ball valve
  • Residual drain with a 2″ blank cape
  • Stand glass with drainage
  • Sampling cock

Brochure

lagerundruehrtank_wottle_skizze

You can find all the details and technical data here:

Brochure tanks

storage tanks type K – small

technical dimensions

  • Diameter: 920 mm
  • Height: 2050 mm
  • Diameter: 1110 mm
  • Height: 2050 mm
  • Diameter: 1270 mm
  • Height: 2050 mm
  • Diameter: 1110 mm
  • Height: 2550 mm
  • Diameter: 1270 mm
  • Height: 2500 mm
  • Diameter: 1370 mm
  • Height: 2500 mm
  • Diameter: 1270 mm
  • Height: 3050 mm
  • Diameter: 1580 mm
  • Height: 2600 mm
  • Diameter: 1580 mm
  • Height: 3100 mm
  • Diameter: 1580 mm
  • Height: 3600 mm

Description:

– Made of stainless steel, material No. 1.4301
– Available in upright or horizontal configuration
– 3 fixed legs, height of 400 mm
– Oval manhole as standard, measuring 300 x 440 mm
– Filler socket NW 50 DIN
– Frame seamlessly formed from tank jacket
– Thermometer connection ½” with stopper
– Clear drain with a 5/4″ ball valve
– Residue drain with a 5/4″ ball valve
– Filling level gauge with a drain cock, diameter 20 mm
– Sampling cock 3/8″
– Ladder frame if overall height exceeds 2,100 mm

Brochure



You can find all the details and technical data here:

Brochure tanks

storage tanks type K – large

technical dimensions

  • Diameter: 920 mm
  • Height: 2050 mm
  • Diameter: 1110 mm
  • Height: 2050 mm
  • Diameter: 1270 mm
  • Height: 2050 mm
  • Diameter: 1110 mm
  • Height: 2550 mm
  • Diameter: 1270 mm
  • Height: 2500 mm
  • Diameter: 1370 mm
  • Height: 2500 mm
  • Diameter: 1270 mm
  • Height: 3050 mm
  • Diameter: 1580 mm
  • Height: 2600 mm
  • Diameter: 1580 mm
  • Height: 3100 mm
  • Diameter: 1580 mm
  • Height: 3600 mm

Description:

– Made of stainless steel, material No. 1.4301
– Available in upright or horizontal configuration
– Equipped with a conical bottom
– 4 fixed legs, height of 400 mm
– Oval manhole as standard, measuring 300 x 440 mm
– Filler socket NW 50 DIN
– Frame seamlessly formed from tank jacket
– Thermometer connection ½” with stopper
– Clear drain with a 5/4″ ball valve
– Residue drain with a 5/4″ ball valve
– Filling level gauge with a drain cock, diameter 20 mm
– Sampling cock 3/8″
– Ladder frame if overall height exceeds 2,100 mm
– Surface finish options: IIId or polished for the base and jacket inside, legs outside; marbled for the jacket and lid outside; IIIc for the remaining surface
– Optional: Cooling jacket welded onto the tank

Brochure

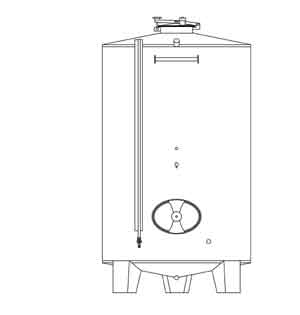

lagertank_typ_k



You can find all the details and technical data here:

Brochure tanks

flood tanks

technical dimensions

  • Diameter: 1200 mm
  • Height: 1250 mm
  • Diameter: 1450 mm
  • Height: 2500 mm
  • Diameter: 1450 mm
  • Height: 3000 mm
  • Diameter: 1600 mm
  • Height: 3000 mm
  • Diamter: 1850 mm
  • Height: 3000 mm
  • Diameter: 2000 mm
  • Height: 3000 mm
  • Diameter: 2000 mm
  • Height: 3000 mm
  • Diameter: 2500 mm
  • Height: 3000 mm

Description:

  • Made of stainless steel material No. 1.4301, surface finish IIIc
  • Flood tanks
  • Round pattern design
  • Can be used in upright or horizontal position
  • Fixed feet
  • Rectangular door
  • Clear drain with a 5/4″ ball valve
  • Residue drain with a 2″ blank cap
  • Draining stand glass
  • Sampling cock

Brochure

ueberflutungstank_skizze

You can find all the details and technical data here:

Brochure tanks

permanently full tanks (standard)

Technical Dimensions

  • Diamter: 400 mm
  • Overall height: 690 mm
  • Tank height: 440 mm
  • Weight: 8 kg
  • Diameter: 400 mm
  • Overall height: 1120 mm
  • Tank height: 840 mm
  • Weight: 12 kg
  • Diameter: 480 mm
  • Overall height: 1150 mm
  • Tankheight: 870 mm
  • Weight: 15 kg
  • Diameter: 525 mm
  • Overall height: 1300 mm
  • Tank height: 1000 mm
  • Weight: 22 kg
  • Diameter: 635 mm
  • Overall height: 1300 mm
  • Tank height: 1000 mm
  • Weight: 26 kg
  • Diameter: 800 mm
  • Overall height: 1350 mm
  • Tank height: 1000 mm
  • Weight: 38 kg
  • Diameter: 800 mm
  • Overall height: 1600 mm
  • Tank height: 1250 mm
  • Weight: 42 kg
  • Diameter: 955 mm
  • Overall height: 1850 mm
  • Tank height: 1500 mm
  • Weight: 46 kg
  • Diameter: 955 mm
  • Overall height: 1850 mm
  • Tank height: 1500 mm
  • Weight: 60 kg
  • Diameter: 1115 mm
  • Overall height: 1850 mm
  • Tank height: 1500 mm
  • Weight: 89 kg
  • Diameter: 1274 mm
  • Overall height: 2150 mm
  • Tank height: 1500 mm
  • Weight: 111 kg

Description:

  • Made of stainless steel material No. 1.4301, surface grade IIIc
  • Equipped with fixed legs and a flat bottom
  • Stainless steel shut-off valve of 3/4″ size (for tanks up to 300 L, 1/2″ Pipe size)
  • Includes a floating cover with an attached air hose
  • Stainless steel air pump with a pressure gauge
  • Comes with a dust protection cover
  • Option to have the interior surface polished in grade 3D upon request

Brochure

immervolltank_standard_skizze

You can find all the details and technical data here:

Brochure tanks

permanently full tanks with taper base

Technical dimensions

  • Diameter: 800 mm
  • Overall height: 1350 mm
  • Tank height: 1000 mm
  • Weight: 38 kg
  • Diameter: 800 mm
  • Overall height: 1570 mm
  • Tank height: 1250 mm
  • Weight: 42 kg
  • Diameter: 800 mm
  • Overall height: 1850 mm
  • Tank height: 1500 mm
  • Weight: 46 kg
  • Diameter: 955 mm
  • Overall height: 1850 mm
  • Tank height: 1500 mm
  • Weight: 60 kg
  • Diameter: 1115 mm
  • Overall heigth: 1850 mm
  • Tank height: 1500 mm
  • Weight: 89 kg
  • Diameter: 1274 mm
  • Overall height: 2150 mm
  • Tank height: 1500 mm
  • Weight: 111 kg
  • Diameter: 1274 mm
  • Overall height: 2650 mm
  • Tank height: 2000 mm
  • Weight: 173 kg
  • Diameter: 1430 mm
  • Overall height: 2650 mm
  • Tank height: 2000 mm
  • Weight: 208 kg
  • Diameter: 1500 mm
  • Overall height: 2650 mm
  • Tank height: 2000 mm
  • Weight: 218 kg
  • Diameter: 1600 mm
  • Overall height: 2650 mm
  • Tank height: 2000 mm
  • Weight: 254 kg
  • Diameter: 1752 mm
  • Overall height: 2650 mm
  • Tank height: 2000 mm
  • Weight: 285 kg

Description:

  • Made of stainless steel material No. 1.4301, surface IIIc
  • Fixed legs
  • Cone bottom
  • Residue drain with a 5/4″ ball valve
  • Sampling cock 3/8″
  • Float cover with air hose
  • Stainless steel air pump with pressure gauge
  • Dust protection cover
  • From 2,000 liters: Manipulation arm for float cover
  • Optional 3D polishing on the interior

Brochure

immervolltank_kegelboden_skizze



You can find all the details and technical data here:

Brochure tanks
