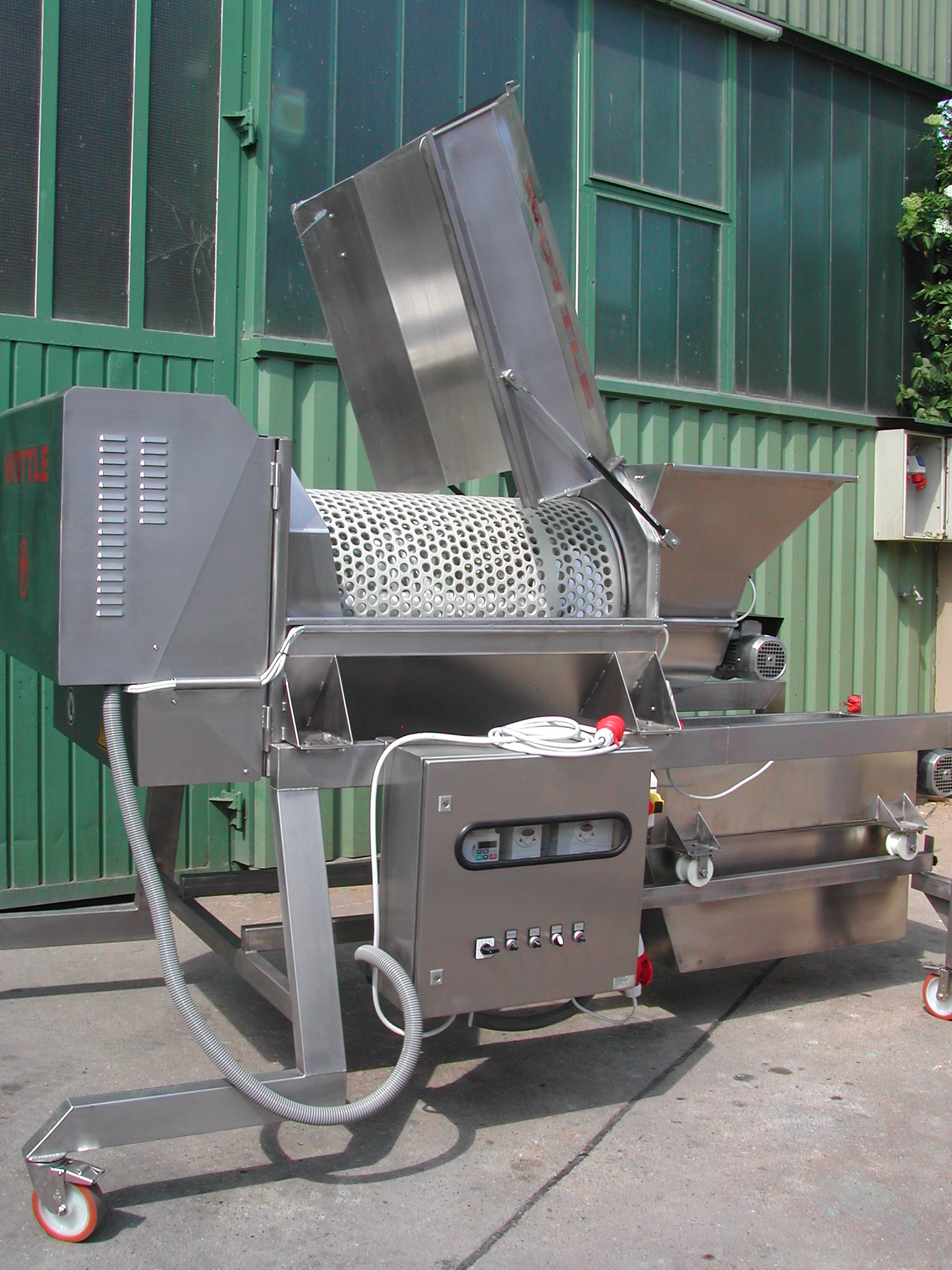

De-stemmer A4-560K

The basic principle – first grape stripping then crushing:

  • Grape stripping & crushing
  • Only stripping
  • Only crushing

A4-560K

  • Capacity: up to 25 t/h
  • 380 V
  • Simple incorporation in existing plants
  • Individual plan solutions

Describtion

  • Stainless steel design
  • Frame parts bent to the outside
  • Continuous transport through slow-rotating feed screw
  • Complete and careful grape stripping
  • Grape stripping basket entirely made of plastic
  • Careful processing without sharp edges
  • Clean working
  • Speed of grape stripping shaft and the basket controllable

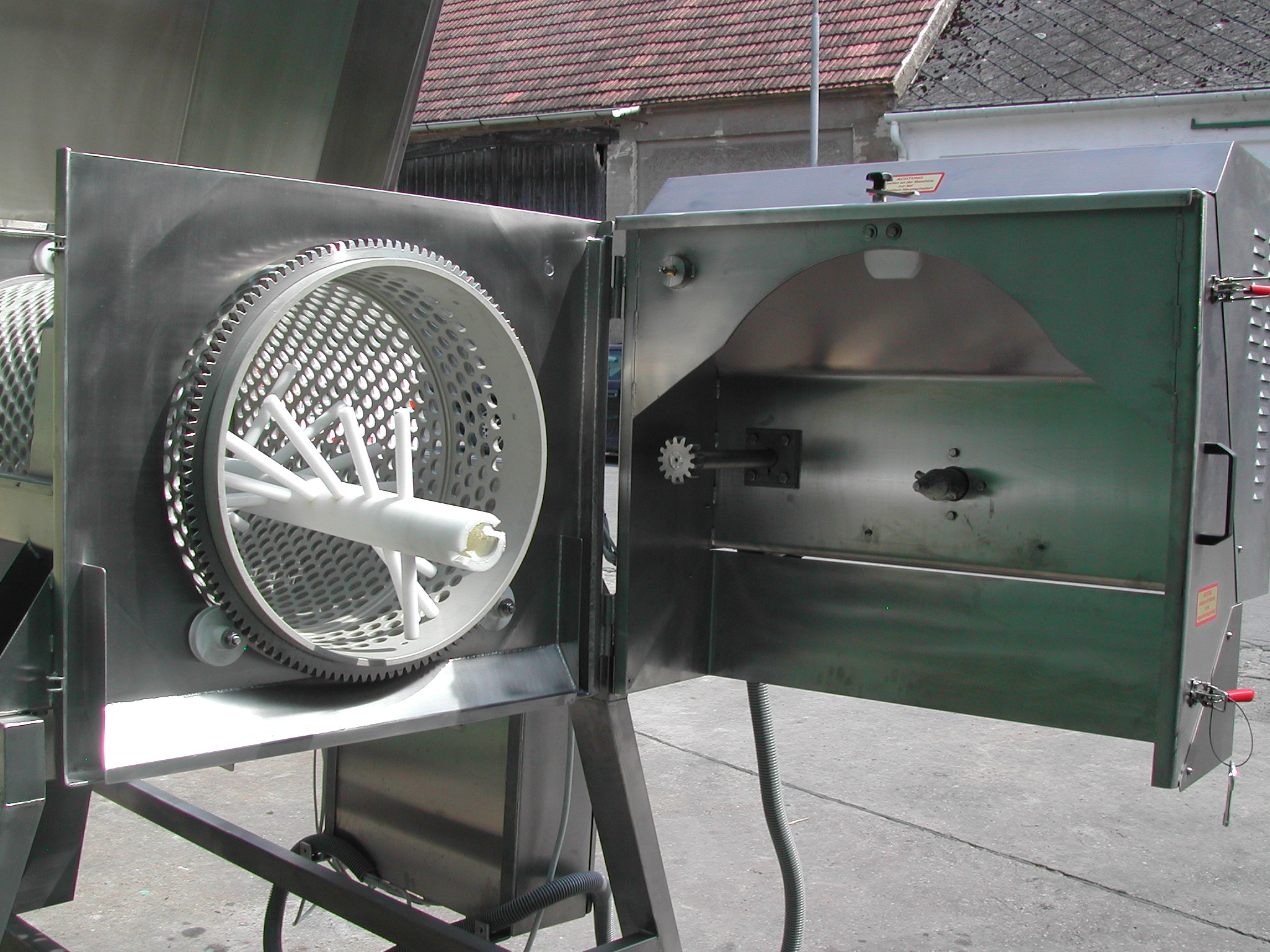

  • Simple cleaning through rapid removal of grape stripping shaft, grape stripping basket and crusher

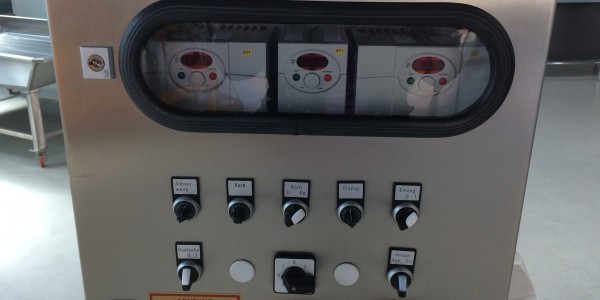

  • Program-control for different processing-techniques
  • Individually controllable speeds of grape stripping shaft and basket
  • Synchronised and reverse action of grape stripping shaft and basket possible
  • Use in complete plants
  • Horizontal loading – low height
  • Simple incorporation in existing plants
  • Grape stripping facility can be separated from the crushing facility
  • Individual plan solutions

Brochure

skizze_komponentenausfuehrung

skizze_quetsche

All details and technical datas you find here:

Brochure De-stemmer
