Pump Marior

weinpumpen_marior

Technical Information

  • hourly rate: 12.000 litre
  • Speed: 450 rmp
  • Motor output: 1,8 PS, 1.400 rmp, 380 V
  • Connections: NW 60, NW 80

 Describtion

  • Finished in stainless steel
  • Mobile and self-priming
  • Axiale coupling with speed converter on electric motor
  • Impeller of rubber, neoprene or silicon suitable for foodstuffaus lebensmittelgeeignetem Gummi, Neopren oder Silikon
  • Low speed for careful transport
  • Optionally with control gearing and by-pass equipement

Brochure



All details and technical datas you find here:

Brochure winepumps

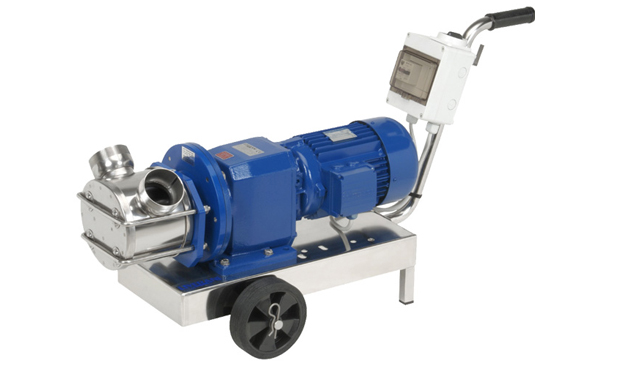

Pump Maxi

weinpumpen_maxi

Technical information

  • Hourly rate: 25.000 litre
  • Speed: 315 rmp
  • Motor output: 3,0 kW, 2 speeds. 380 V
  • connections: NW 80
  • Stundenleistung: 50.000 Liter
  • Drehzahl: 630 UpM
  • Motorleistung: 3,5 kW, 2 Geschw. 380 V
  • Anschlüsse: NW 80

Describtion

  • Finished in stainless steel
  • Mobile and self-priming
  • Axiale coupling with speed converter on electric motor
  • Impeller of rubber, neoprene or silicon suitable for foodstuffaus lebensmittelgeeignetem Gummi, Neopren oder Silikon
  • Low speed for careful transport
  • Optionally with control gearing and by-pass equipement

Brochure



All details and technical datas you find here:

Brochure winepumps

MORI positive displacement pumps

weinpumpen_mori

Technical information

  • Connection: NW 80/100
  • Motor output: 380 V
  • Hourly rate: 5.000 kg
  • Weight: 80 kg
  • Connection: NW 100
  • Motor output: 380 V
  • Hourly rate: 10.000 kg
  • Weight: 130 kg
  • Connection: NW 120
  • Motor output: 380 V
  • Hourly rate: 15.000 kg
  • Weight: 150 kg
  • Connection: NW 120
  • Motor output: 380 V
  • Hourly rate: 30.000 kg
  • Weight: 300 kg

Dimensions

  • Lenght total: 1000 mm
  • Width pump: 700 mm
  • Lenght funnel: 560 mm
  • Width funnel: 600 mm
  • Height funnel: 400 mm
  • Lenght total: 1300 mm
  • Width pump: 700 mm
  • Length pump: 700 mm
  • Width funnel: 650 mm
  • Height funnel: 400 mm
  • Lenght total: 1300 mm
  • Width pump: 700 mm
  • Lenght funnel: 700 mm
  • Width funnel: 650 mm
  • Height funnel: 420 mm
  • Lenght total: 1600 mm
  • Width pump: 750 mm
  • Lenght funnel: 700 mm
  • Width funnel: 650 mm
  • Height funnel: 450 mm

 Describtion

  • Finished in stainless steel
  • Electric piston
  • Receiving funnel with variable height
  • Careful transport without breakage of grape pips
  • Chassis with locking device
  • Optionally expansion vessel, stainless steel bend, straight connections

Brochure



All details and technical datas you find here:

Brochure winepumps

MORI hose pump

schlauchpumpen_mori

Technical information

  • Motor: 380 V
  • Rmp: 7 – 60
  • Hourly rate: 1.000 to 10.000 litre
  • Connection: NW 50
  • Weight: 240 kg
  • Motor: 380 V
  • Rmp: 7 – 60
  • Hourly rate: 1.000 bis 20.000 Liter
  • Connection: NW 80
  • Weight: 420 kg

Dimensions

  • Lenght: 1200 mm
  • Width: 670 mm
  • Height: 1450 mm
  • Lenght: 1600 mm
  • Width: 840 mm
  • Height: 1700 mm

 Describtion

  • Finished in stainless steel
  • Mobile and self-priming
  • careful transport without breakage of grape-pips
  • Stepless geared motor or frequency converter
  • Syncronised or opposing operation
  • Optionally – funnel with screw or stainless steel transport trolley, remote control with cable, automatic bypass, automatic pressure regulator

The working principle of this pump is based on the pressure of the rotating rollers which continously squeeze a rubber hose. This produces the product thrust.

Brochure



All details and technical datas you find here:

Brochure winepump

SCHNEIDER flat funnel / eccentric screw pumps

pumpe_schneider

Technical information

  • Motor: 7,5 kW
  • Rmp: 155
  • Hourly rate: 15.000 bis 20.000 kg
  • Connection: NW 50
  • Weight: 220 kg
  • Motor: 7,5 kW
  • Rmp: 130
  • Hourly rate: 20.000 bis 30.000 kg
  • Connection: NW 80
  • Weight: 245 kg

Dimensions

  • Lengh: 1580 mm
  • Width: 900 mm
  • Height: 400 mm
  • Lengh: 1820 mm
  • Width: 900 mm
  • Height: 400 mm

 Describtion

  • Finished in stainless steel
  • Compact design
  • Mobile
  • Careful transport without breakage of grape-pips
  • Largely free of vibration through hollow rotor
  • Options: attachment funnel, pole-reversible motor 6,5/8 kW, continously adjustable speed with variable gear motor 7,5 kW or frequency converter 7,5 kW, musting facility, dry operation protection with level control (ultrasound)

Brochure



All details and technical datas you find here:

Brochure winepumps

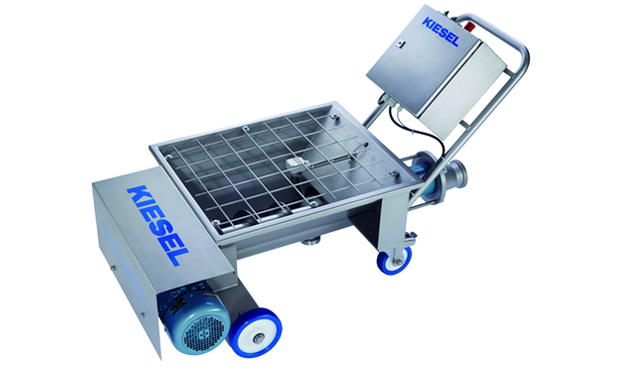

KIESEL flat funnel/eccentric screw pump series FTF

pumpe_kiesel

Technical information

  • Motor: 4,0 kW
  • Rmp: 200
  • Hourly rate: 10 m³
  • Connection: NW 100
  • Stator: Ø 60
  • Weight: 185 kg
  • Motor: 5,5 kW
  • Rmp: 160
  • Hourly rate: 15 m³
  • Connection: NW 100
  • Stator: Ø 80
  • Weight: 257 kg
  • Motor: 5,5 kW
  • Rmp: 250
  • Hourly rate: 25 m³
  • Connection: NW 100
  • Stator: Ø 80
  • Weight: 257 kg
  • Motor: 7,5 kW
  • Rmp: 220
  • Hourly rate: 50 m³
  • Connection: NW 100
  • Stator: Ø 100
  • Weight: 365 kg

 Describtion

  • Finished in stainless steel
  • flat, low design
  • Hollow rotor from stainless steel – vibration-free operation
  • Careful transport through low speeds
  • dry operation – proof, control through level probes
  • Reversing switch, motor protection switch, level control in robust switch-box
  • Connection for CO2 blanketing of musts

Brochure



All details and technical datas you find here:

Brochure winepumps
